Auto Controller Selection from an IO List — How Modern BMS Engineering Removes Hours of Spec-Sheet Math
Copied to clipboard ✓
A Bengaluru Sales Engineer's Desk, 4:30 PM
Niranjan is a sales engineer at a BMS channel partner in Bengaluru. The customer is a developer building a 12-storey commercial tower in Whitefield. The IO list arrived in the morning. The customer wants a budgetary quote in the inbox by 6 PM today. The IO list has nine panels: ``` DDC-1 AHU plant rooms 9 AI 20 DI 5 AO 9 DO DDC-2 Chilled water plant 2 AI 8 DI 0 AO 2 DO DDC-3 Fire alarm interface 0 AI 3 DI 0 AO 0 DO DDC-4 Air compressor 2 AI 5 DI 0 AO 2 DO DDC-5 DG transformer 0 AI 4 DI 0 AO 0 DO DDC-6 Lighting and Public 3 AI 12 DI 0 AO 8 DO DDC-7 Security interface 0 AI 16 DI 0 AO 8 DO DDC-8 Energy metering 0 AI 0 DI 0 AO 0 DO (Modbus only) DDC-9 HVAC integration 0 AI 0 DI 0 AO 0 DO (BACnet only) ``` For each panel, Niranjan must choose the right module mix from a catalogue: ``` Available module families EN-CPU-V2 (controller, no IO) EN-1AI1AO (1 AI, 1 AO) EN-2DI1DO (2 DI, 1 DO) EN-4DI1DO (4 DI, 1 DO) EN-4DIAI3DO2AO (4 DI/AI, 3 DO, 2 AO) EN-MRTU-BIP-LX (Modbus to BACnet gateway) ...and a dozen more ``` For each panel, he must pick a combination that covers the IO requirement plus a sensible spare margin (typically +15 to +20 percent), then total relays, terminal blocks, cable estimates, MCBs, and write a quote with GST. Done by hand, this is a full day of spec-sheet math. Done with errors, the project under-spec'd or over-spec'd costs the channel partner the deal — or the margin. It is 4:30 PM. The quote is due at 6 PM. Every single one of these problems has one solution — modern BMS engineering tools that auto-select controllers from an IO list.What Auto Controller Selection Does

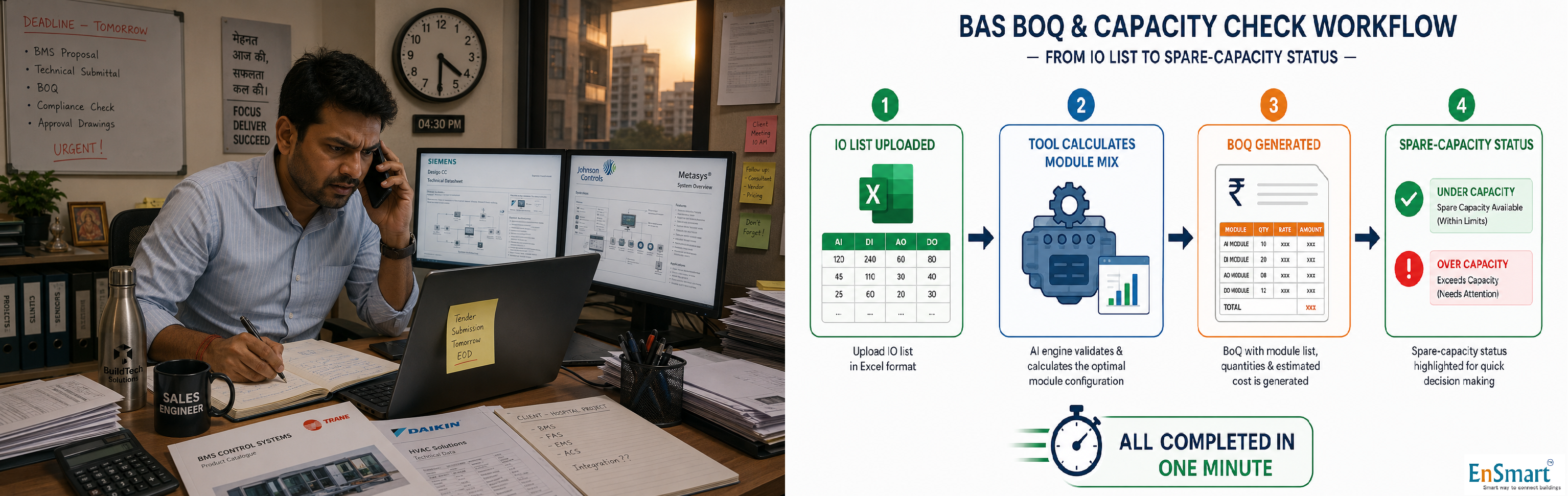

Modern engineering tools take a structured IO list (Excel or CSV) and produce a complete BoQ in under a minute: ``` Input IO list with one row per panel: Panel name | AI required | DI required | AO required | DO required Plus optional fields: Type (Hardwired / Integration), Modbus device count, BACnet device count Tool processes: 1. Pick controller (EN-CPU-V2 or equivalent) 2. Pick the smallest set of IO modules that covers the IO mix plus the spare margin policy. 3. Calculate relay count for DOs. 4. Calculate terminal block requirements (single-deck and double-deck). 5. Estimate cable lengths (min and max range per IO type). 6. Add MCB, power socket, fuse line items. 7. Roll up to a BoQ with quantities and unit prices. 8. Apply GST. 9. Output a printable PDF quote. Output Per-panel module list + spare-capacity status + cable estimate Project rollup: total module count, relay count, hardware cost GST, grand total Status flags: any panel under-spec'd or over-spec'd ``` The work that took a day takes under a minute, with zero spreadsheet errors.Spare Capacity — The Quiet Best Practice
A good IO design includes spare capacity for late additions, sensor failures, and small scope creep. A typical policy: ``` AI spare: +15 percent rounded up to next module AO spare: +20 percent rounded up to next module DI spare: +10 percent rounded up to next module DO spare: +10 percent rounded up to next module ``` The tool applies these automatically and flags panels where the spare requirement leaves a module mostly unused — the engineer can then choose to combine functions across panels or accept the slight over-spec. ``` Example output for DDC-1 (AHU plant): Required: AI 9 DI 20 AO 5 DO 9 Designed: AI 9 DI 20 AO 5 DO 9 (+ spares applied below) Spare added: AI 0 DI 2 AO 2 DO 6 Modules: 1 × EN-CPU-V2 2 × EN-4DIAI3DO2AO 1 × EN-1AI1AO 3 × EN-4DI1DO Relays: 9 (one per DO) Status: OK — within spare policy ```What This Does for the Channel Partner
``` Time savings Manual quote: 6-8 hours per project Auto-selected quote: 3-5 minutes per project Time recovered: 8 hours per quote × 3 quotes per week = 24 hours per week per sales engineer Error reduction Manual: 1-2 spec errors per project (typically caught at site, not at quote) Auto: Zero arithmetic errors. Logic errors only on non-standard panels. Margin protection Under-spec'd quotes lose money during commissioning (extra modules ordered late at higher price). Auto-selection enforces the spare policy and prevents under-spec. Quote consistency Same IO list always produces the same BoQ. No engineer-to- engineer variation. The channel partner standardises. ```How Niranjan Hits the 6 PM Deadline
Niranjan opens the IO list spreadsheet, copies the panel rows into the tool, and clicks generate. ``` 14:32 IO list pasted, generate clicked 14:33 BoQ produced 9 panels designed Total modules: 7 large + 8 small + 13 relays Hardware cost line, GST line, grand total Per-panel module cards visible 14:35 Niranjan reviews each panel — all green status 14:38 PDF quote downloaded 14:42 Email sent to the customer 14:45 Niranjan goes back to the previous quote that was waiting 17:30 Next-day quote already underway ``` The 6 PM deadline becomes a 2:42 PM delivery. Niranjan does three quotes that afternoon instead of one.Why Engineering Tools Matter Now
Indian BMS demand is growing faster than the supply of experienced sales engineers. Channel partners cannot scale by adding people at the same rate as projects. The bottleneck is the time-per-quote. Engineering tools that automate the IO-list-to-BoQ work multiply each engineer's output by 5 to 10 times. That is the difference between winning every reasonable bid and losing half of them to a faster competitor. ``` What the tool does not replace: - Site survey and IO discovery - Customer relationship and commercial negotiation - Non-standard panel design (where logic still helps) - Programming and commissioning What the tool does replace: - Datasheet flipping - Spreadsheet arithmetic - Hand-typed BoQs - Quote-to-quote inconsistency ``` The engineer's value moves up the stack — from arithmetic to architecture. Engineering tools do not replace engineers. They free engineers from the work that should never have needed an engineer in the first place. The IO list is the input. The BoQ is the output. Everything in between is now automatic — and the engineer goes home on time.Related Topics
